73 Photos

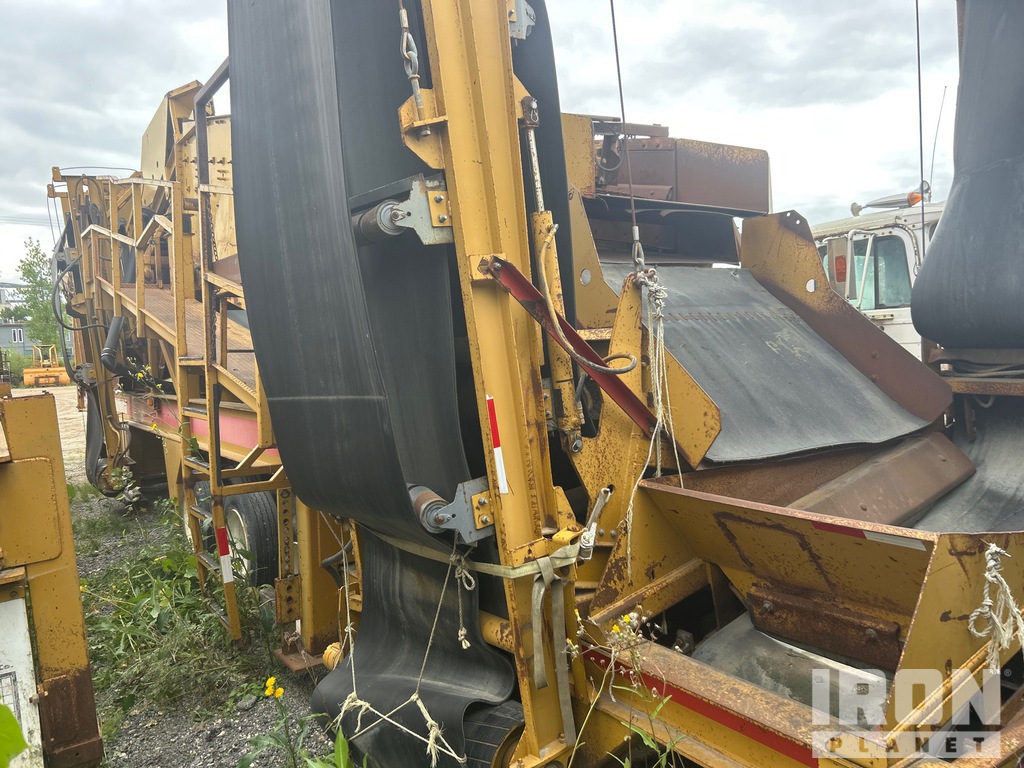

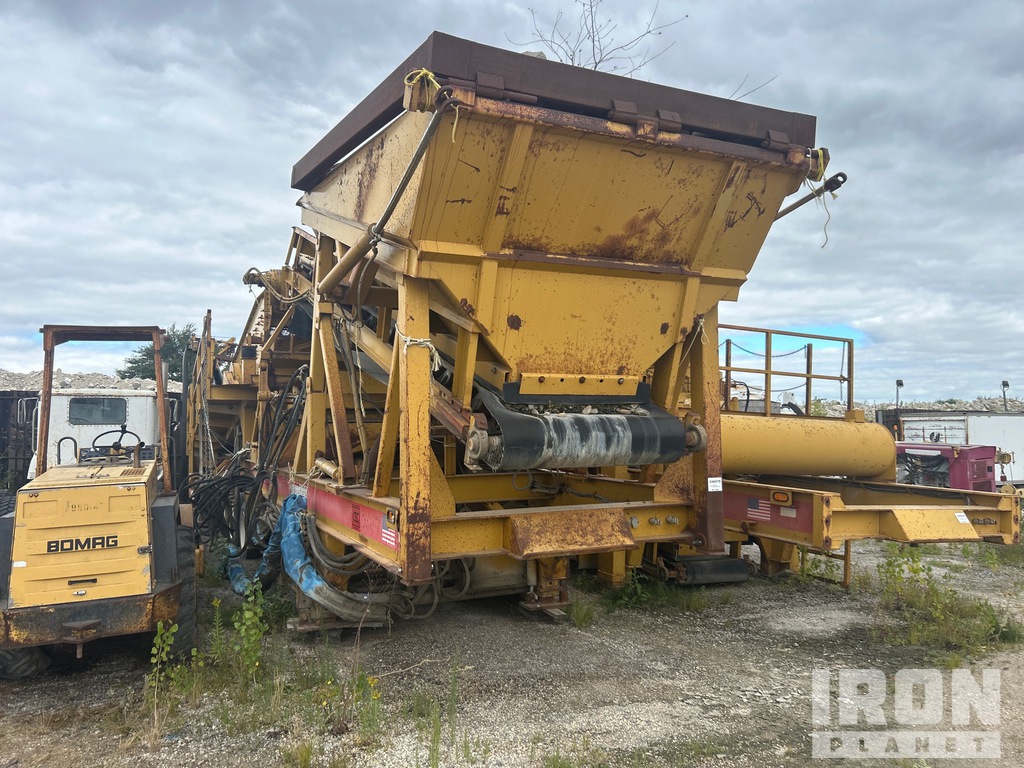

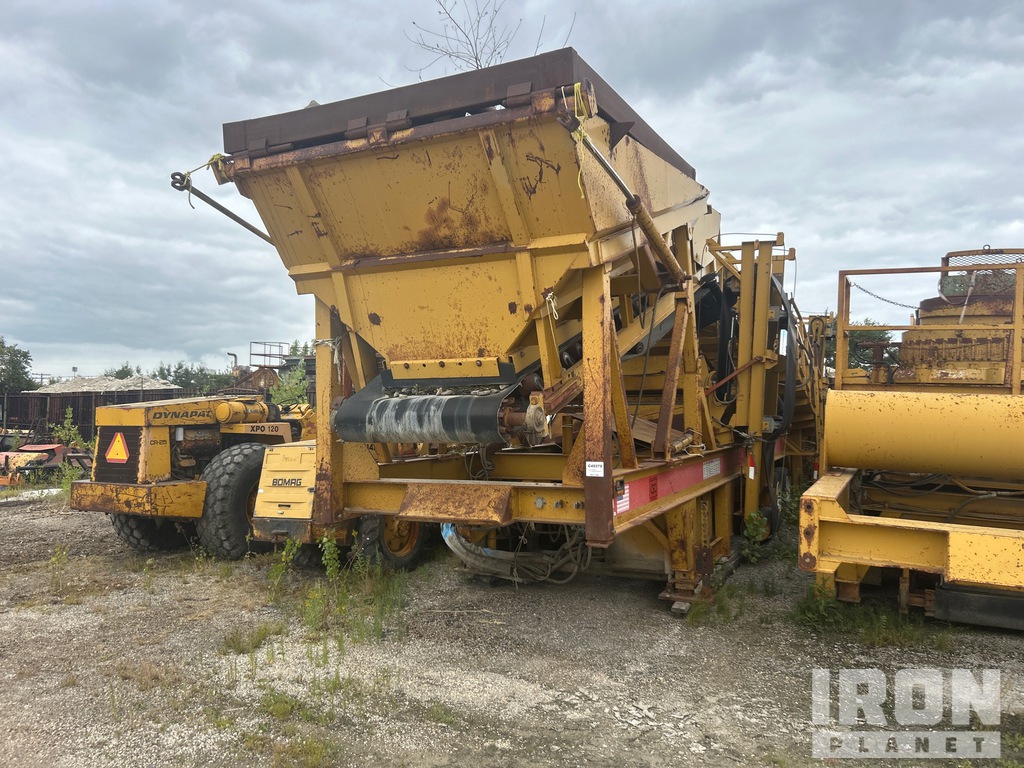

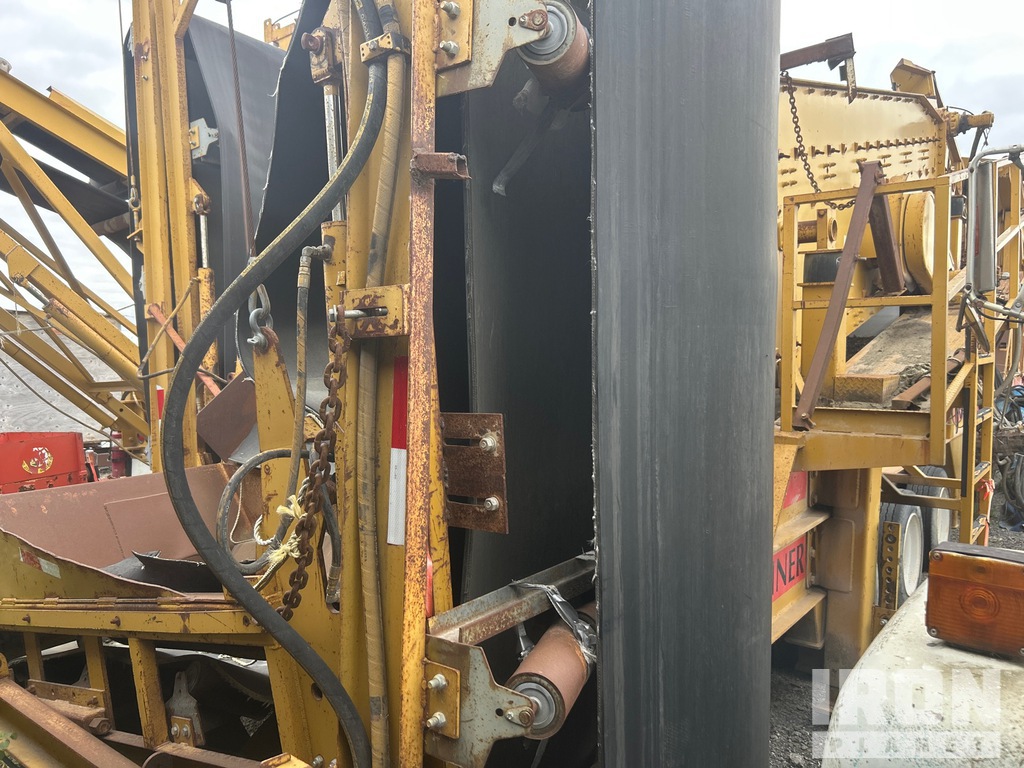

Construction Equipment Company 6x16 3 Deck Portable Incline Screen Plant
Located
Winnipeg, MB, CAN
Winnipeg, MB, CAN
Serial number
06353271
06353271
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15827703
In yard
No
Features
CEC 8 ft x 15 ft Belt Feeder w/Hydraulic Raise Grizzly 16 ft x 6 ft Triple Deck Screen, 52 in Wide Feed Conveyor, 58 in Wide Under Screen Conveyor, 29 in Wide Left Discharge Conveyor, 32 in Wide Right Discharge Conveyor, 29 in Conveyor, Tri/A Carrier, Walking Beam, Hydraulic Leveling
General Appearance
Serial Number / VIN
06353271
Electrical
Cables and Connections
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Not operationally checked
Valves
Residue around valves
Hydraulic Tank
Hoses
Stabilizer Jack Cylinders
Limited Function Check
The hydraulic system could not be operationally checked.
Chassis
Feed Hopper
Length @ top: 14’, Width @ top: 8’
Feed Conveyor Condition
52 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Not operationally checked
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Not operationally checked
Discharge Conveyor Rollers
Some damaged and missing rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Incline screen, Number of decks: 3
Deck Frames / Wear Bars
Carrier
Axle Condition
Trailer Brakes
Air, Not operationally checked
Brake Lines/Hoses
Not operationally checked
Limited Function Check
The unit could not be started and run; several components could not be checked.
Tire Size
All of the tires are the same size, 255/70R22.5 Rear tires
Tire Condition
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Tongue/ Hitch Condition
No visible damage
Power Receptacle Functional
Not operationally checked
Lights/Wiring Condition
Not operationally checked
Marker Lights Functional
Not operationally checked, Some marker lights are damaged or missing
Brake Lights Functional
Not operationally checked
Turn Signals Functional
Not operationally checked
Frame Rails/ Main Beams Condition
No visible damage
Landing Gear / Tongue Jack
Stabilizer Jacks
Number of jacks 4, Hydraulic, The stabilizers could not be operationally checked
