109 Photos

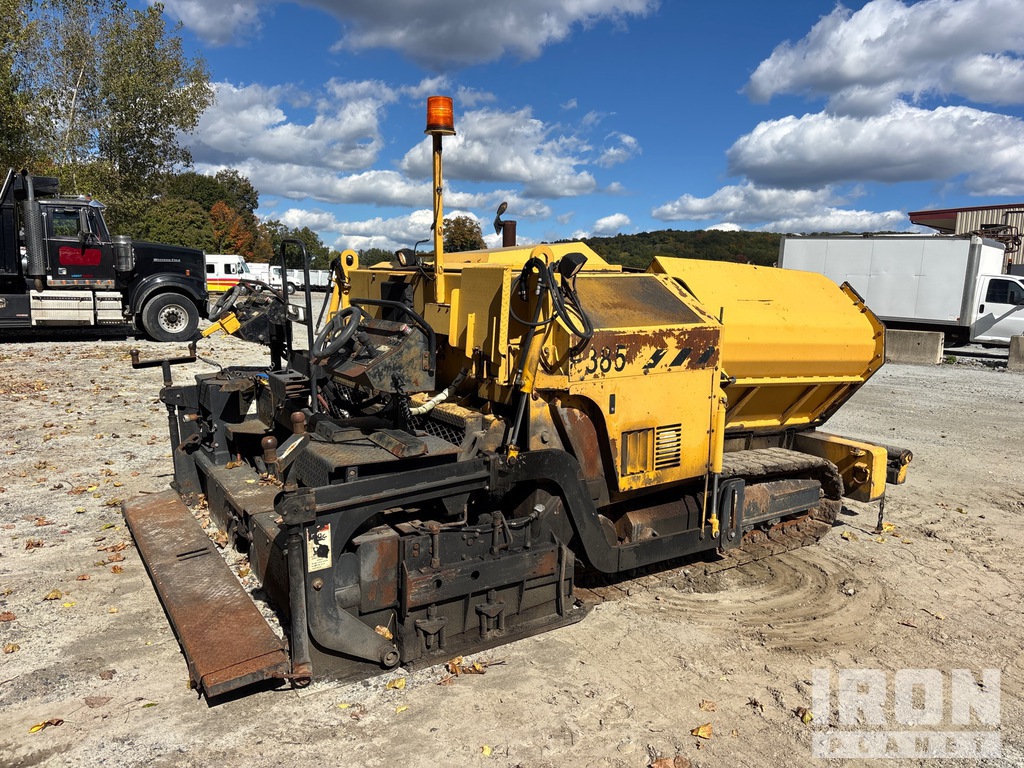

2015 Weiler P385A Track Asphalt Paver
Located
North Franklin, CT
North Franklin, CT
Serial number
P385A-1513
P385A-1513
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#16001117
In yard
Yes
Features
Dual Controls, Electric Heated 8 ft - 15 ft 8 in Screed, On Board Generator, MOBA Ultrasonic Sensors, 14 in Triple Grouser Track Shoes w/Rubber Pads

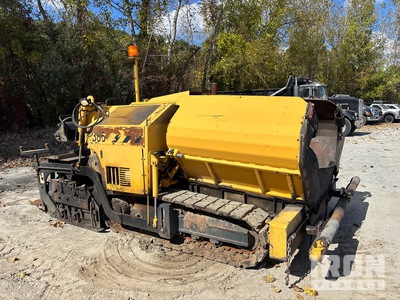

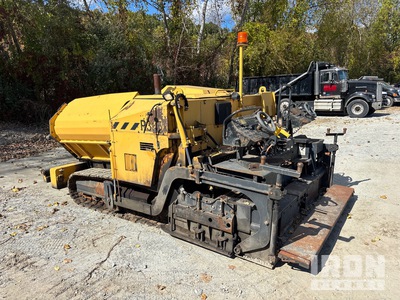

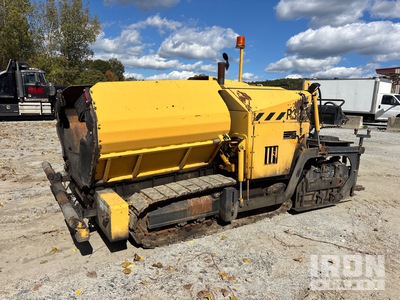

General Appearance
(13)
Serial Number / VIN
P385A-1513
CE Mark
No CE mark found
Hour Meter / Odometer
Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Operational
Safety
(1)
Travel Alarm
Operational
Horn
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
(9)
Hydraulic Controls
Steering Control
Drivetrain Controls
Oil Pressure
The gauge registers in the operating range. 43 PSI
Warning Lights
Operational
Screed Control Switches
Operational
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
(12)
Engine
US EPA Label not legible
Emission Label
Blow-by (subjective visual observation)
Video capture could not be performed
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
(6)
Transmission
Operational
Left Drive Motor
Right Drive Motor
Left Final Drive
Limited Function Check
The drivetrain was operational.
Right Final Drive
Hydraulics
(20)
Pumps (Hydraulics)
Dripping leak
Valves
Hydraulic Tank
Low fluid level
Hydraulic Motors
Hopper Wing Cylinders
Dripping leak on the left cylinder, Dripping leak on the right cylinder
Hoses (Hydraulics)
Screed Tow Point Cylinders
Screed Lift Cylinders
Dripping leak on the right cylinder
Limited Function Check
The hydraulic system was operational.
Screed Extension Cylinders
Chassis
(29)
Screed Tow Arms
Weld repairs to left tow arm
Screed Bottom Plate
Hopper Wings
Cylinder leaks, Both cylinders leaking
Metering Gates
Manual
Auger/ Screw Condition
Feed Conveyors
Conveyor Drive Chains and Sprockets
Push Rollers
Screed Heaters
Screed Slope Adjustment
Manual adjustment, Operational
Screed Crown Adjustment
Manual adjustment, Operational
Screed Tow Point Adjustment
Powered adjustment, Operational
Mat Thickness Adjusters
Manual adjustment, Operational
Extension Tubes
End Gates
Spray Down System
Not operationally checked
Limited Function Check
The main components were operational in a limited check.
Undercarriage
(19)
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
