169 Photos
2014 Fassi F65A.0.24 6129 lb Knuckle Boom on 2015 Ram 5500 4x4 Crew Cab Boom Truck
Located
Nisku, AB, CAN
Nisku, AB, CAN
Usage
247,615 km (153,861 mi)
247,615 km (153,861 mi)
Serial number
3C7WRNFL3FG562240
3C7WRNFL3FG562240
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#14403695
In yard
Yes
Year
2015
Manufacturer
Model
Asset type
Serial number or VIN
3C7WRNFL3FG562240
Features
Cummins ISB 6 Cylinder 6.7 L Diesel 325 hp Engine, 2015 US EPA Label, CARB Compliant, Positive Air Shutoff, 12571 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Automatic Transmission, 7250 lb Front Axle, 13500 lb Rears, 18000 lb GVWR, 225/70R19.5, Spring Suspension, 197 in Wheelbase, PTO, 6.5 ft - 33.3 ft 5 Section Boom, Out and Down Outriggers, 6 ft 0 in x 94 in Bed, Crane just recertified till 11/13/2026
Notes
=== Rebuild Transfer Case, See Documentation in Document Section ( Work Order, Maintenance History) ***
Supporting documents
General Appearance
Picture, Left Front Corner

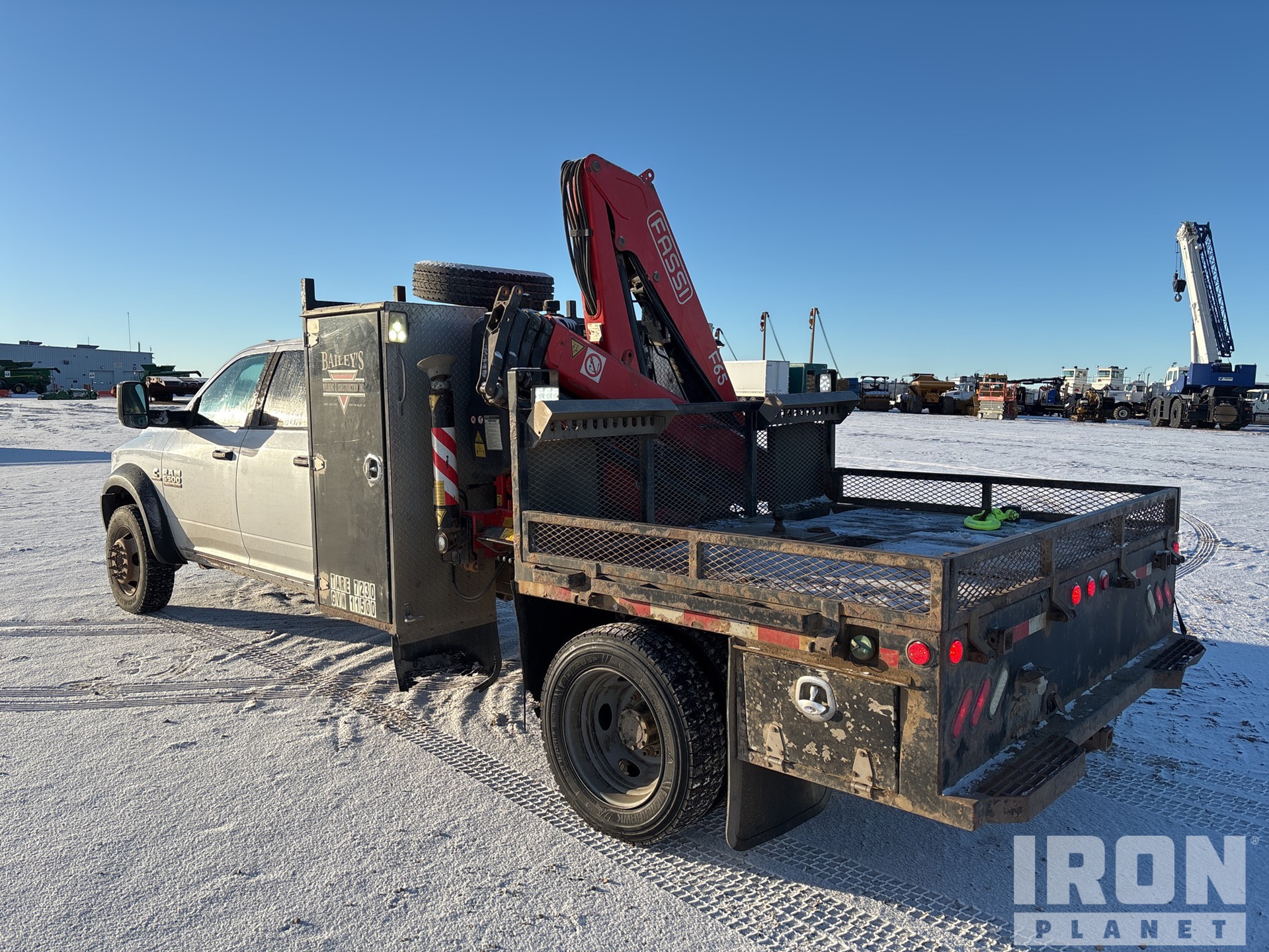

Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

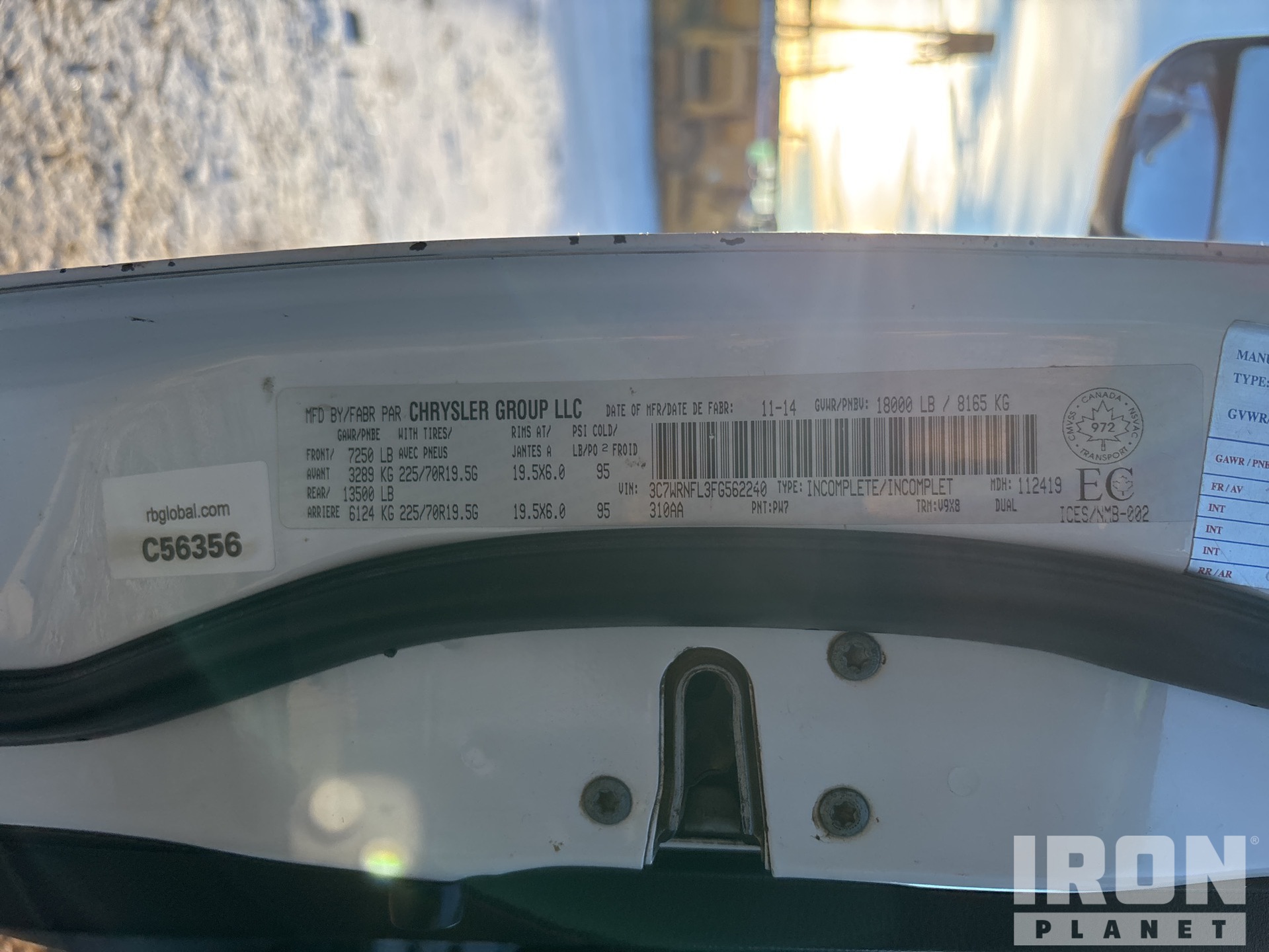

Serial Number / VIN
3C7WRNFL3FG562240
Second Serial Number/VIN Photo
Hour Meter / Odometer
247615 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Windshield very cracked
Exterior Lights
Some not operational, Rear light lights are not operational
Engine
Emissions Information
2015 US EPA Label, CARB Compliant
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Visible
Starter
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Unable to locate
Limited Function Check
The engine started and ran.
Cab
Engine Hours
12571 Engine hrs
Mirrors
Window Controls
Both Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Maintenance/Service light stays on
Gauges
Operational
Gear Selector
Brake Control
Operational
PTO Control
Operational
ECM Miles
Unable to get ECM reading
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational
PTO Pump
Operational
Frame Condition
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Suspension Bushings
Left Steer Tire
Left Rear Drive Tires
Right Rear Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Boom
Bed Body
Support Frame
Hinge Points
Valves
Hoses (Hydraulic)
Swing Motor
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Jib Condition
Turntable Bearing
Stabilizer Beams
Stabilizer Controls
Hydraulic Controls
Limited Function Check
The hydraulic system was operational.
