125 Photos
2003 Kenworth T800 8x4 Tri/A Dump Truck
Located
Helenwood, TN
Usage
253,191 mi (407,472 km)
Serial number
1XKDPBTX63J709522
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#13988476
In yard
No
Year
2003
Manufacturer
Model
Asset type
Serial number or VIN
1XKDPBTX63J709522
Features
Cat C15 6 Cylinder Diesel Engine, 41413 Engine hrs, Engine Brake, Eaton Fuller RTLO-18918B 18-Speed Manual Transmission, Differential Lock, 18740 lb Front Axle, 67618 lb Rears, 4.33:1 Axle Ratio, 86358 lb GVWR, Air Ride Cab, Aluminum Outer Wheels, 385/65R22.5 Front Tires, 11R22.5 Rear Tires, Air Lift Pusher Axle, Dual Steering Boxes, Double Frame, Air Ride Suspension, 202 in Wheelbase, PTO, OX Bodies 16 ft Long x 60 in High Steel Body, Round Bottom, Electric Roll Tarp, High-Lift Tailgate, Pintle Hitch
General Appearance

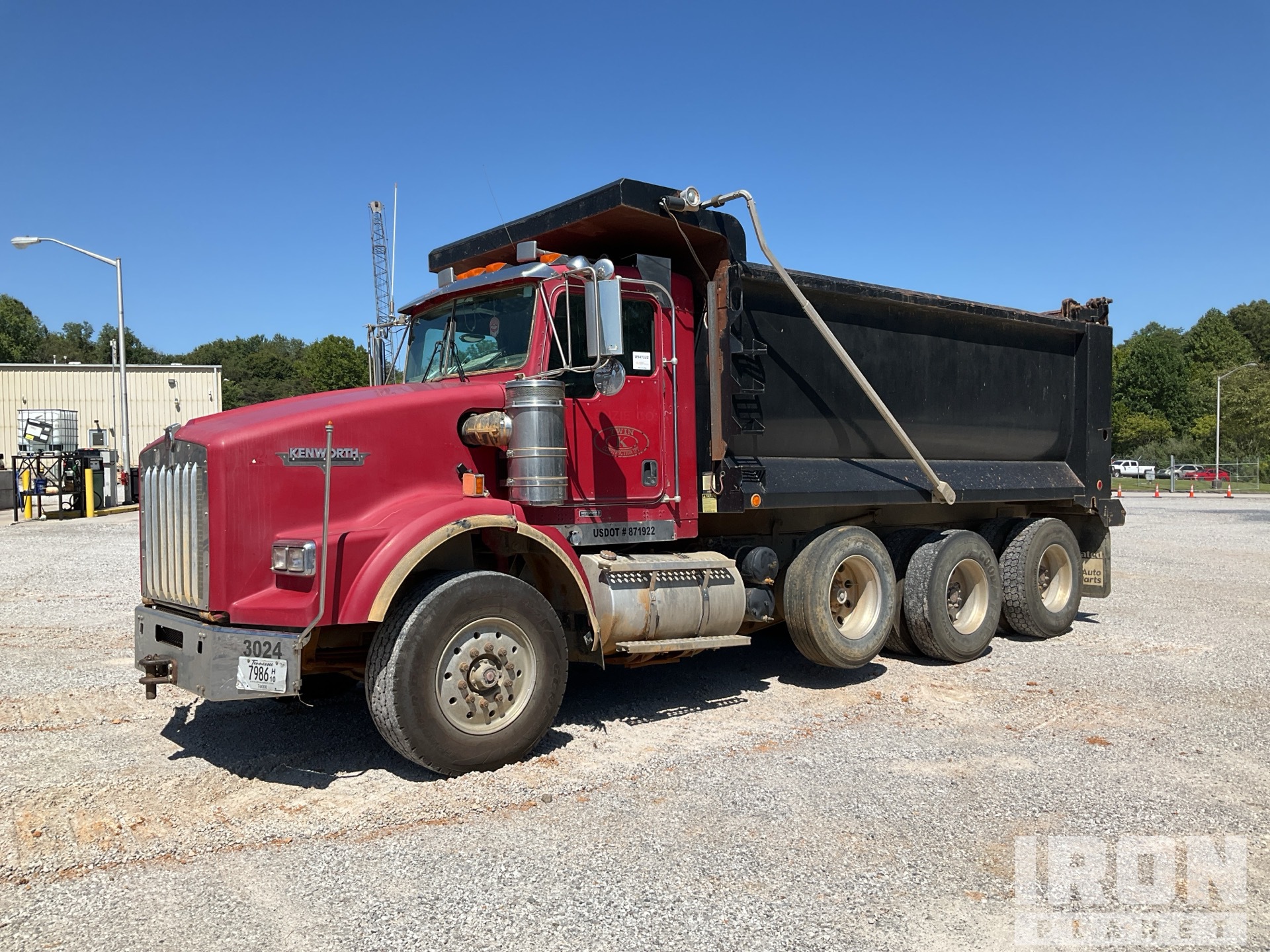

Picture, Left Front Corner

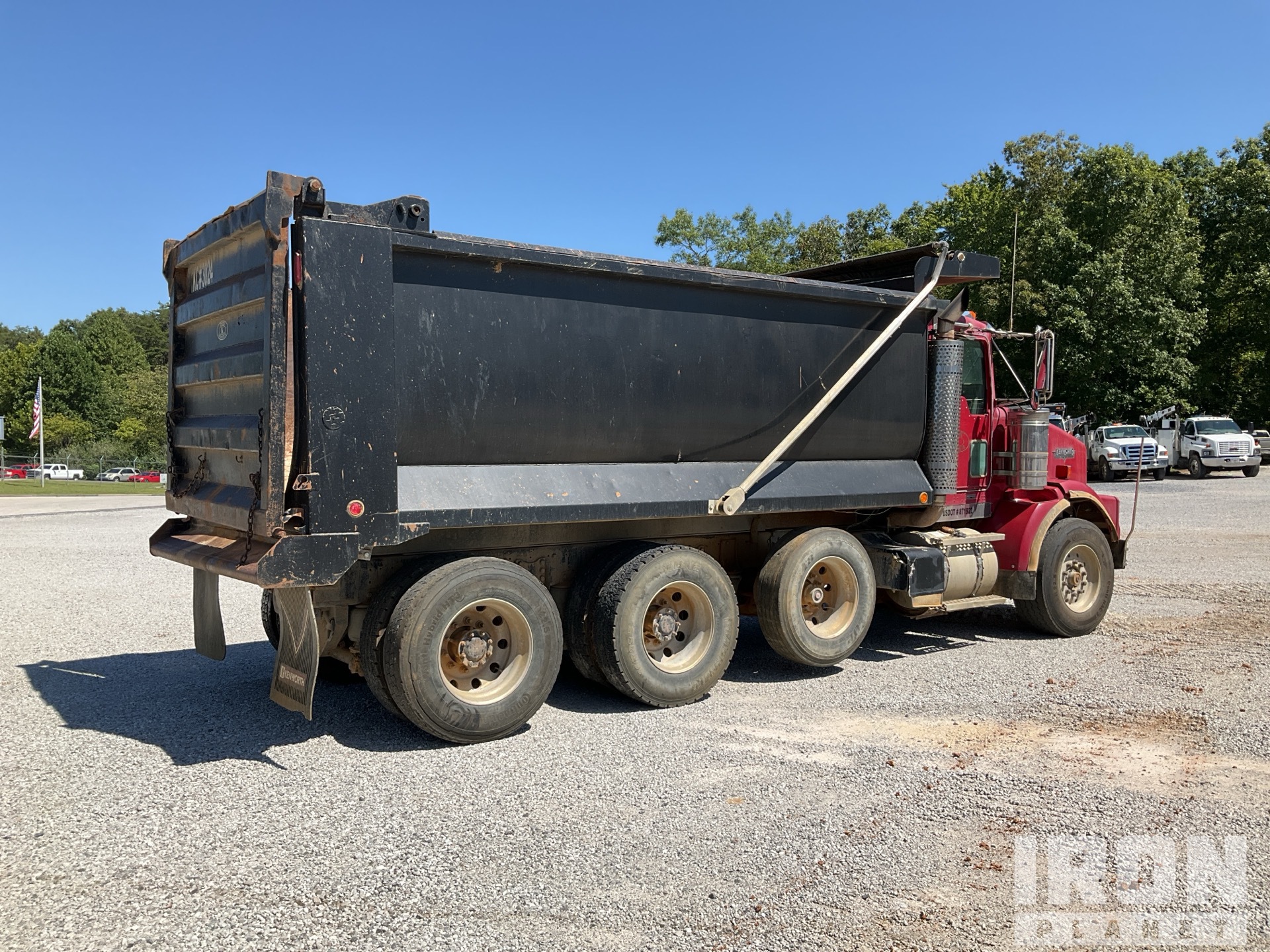

Picture, Left Rear Corner

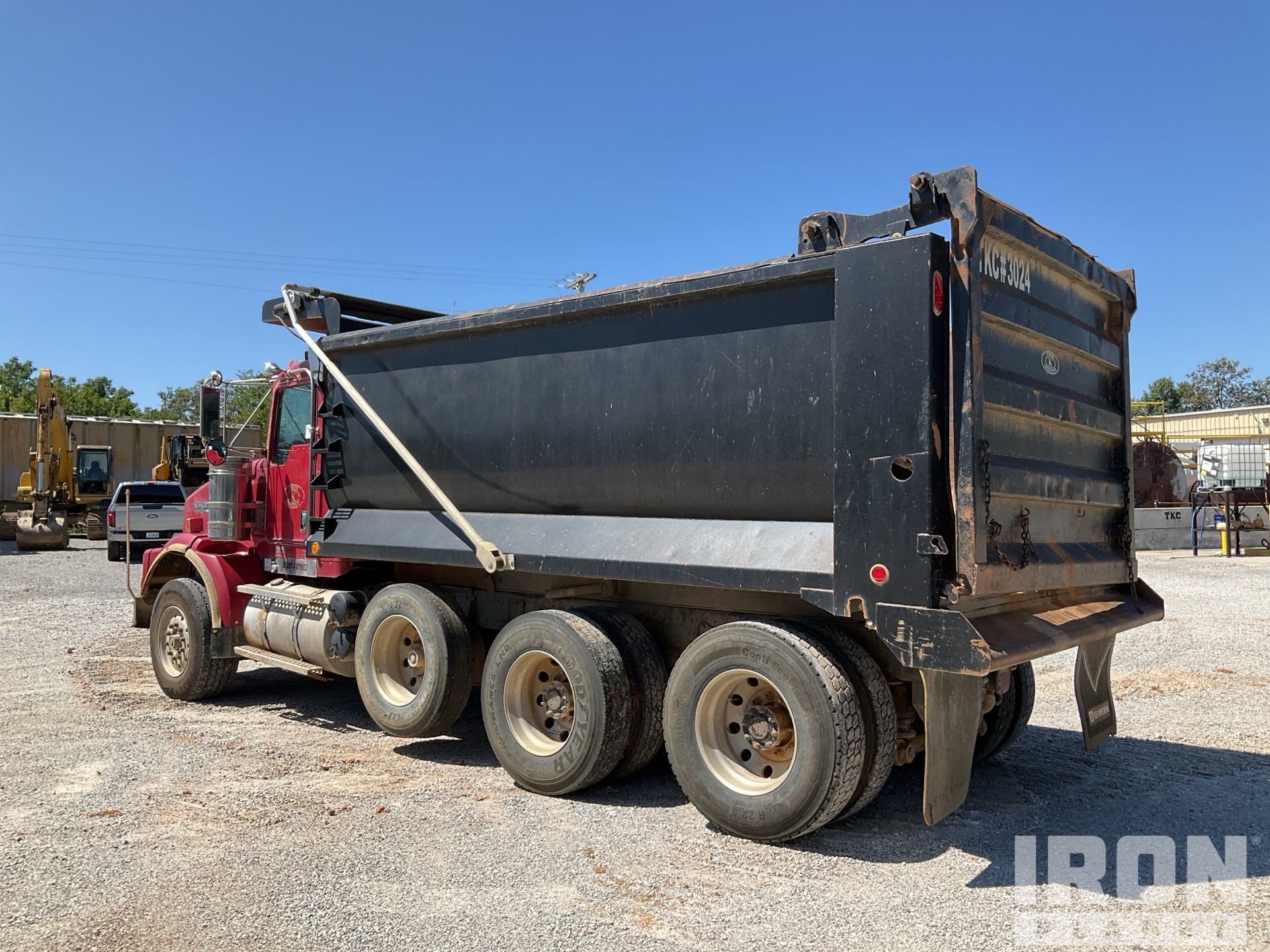

Picture, Right Rear Corner

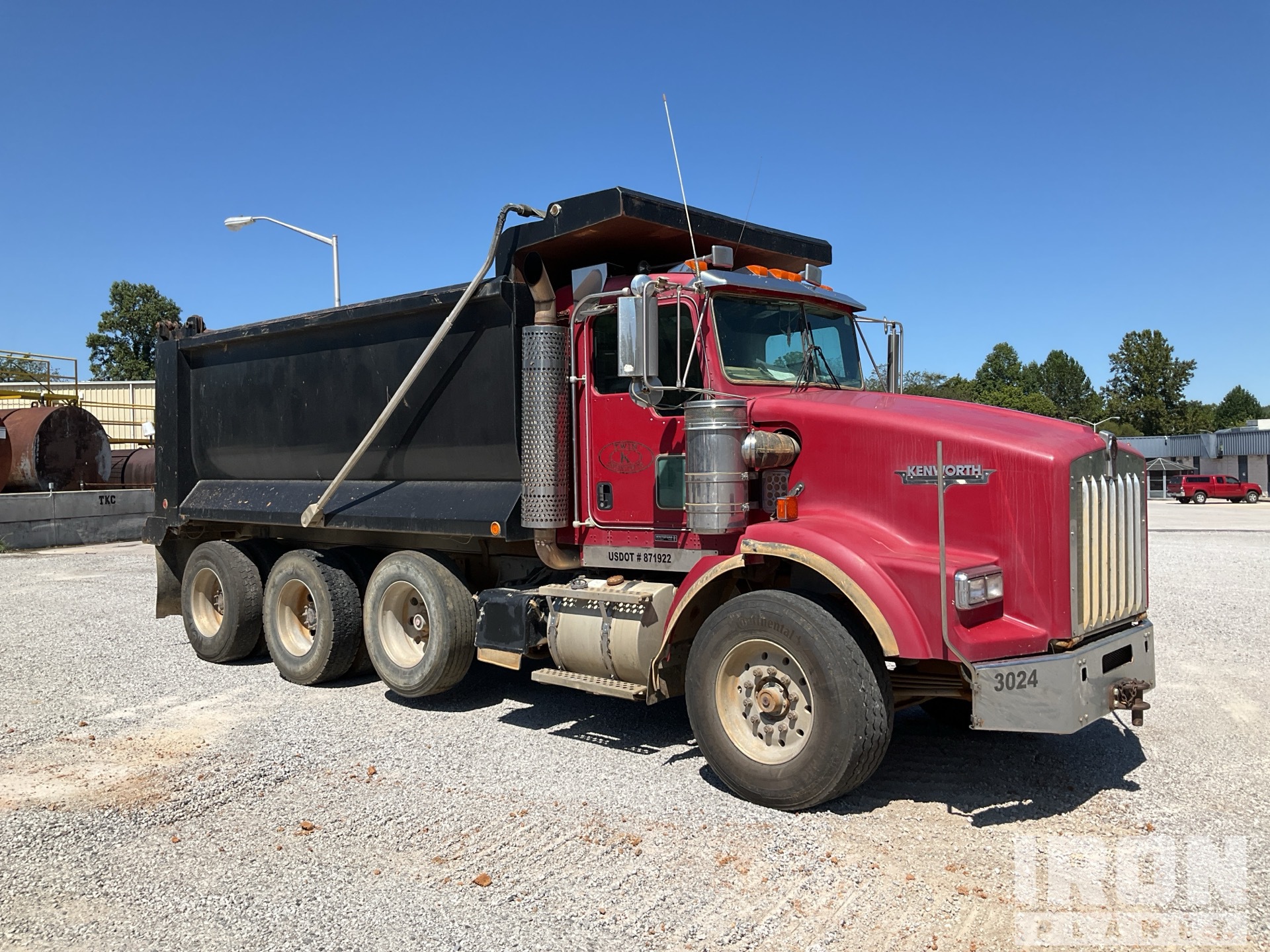

Picture, Right Front Corner

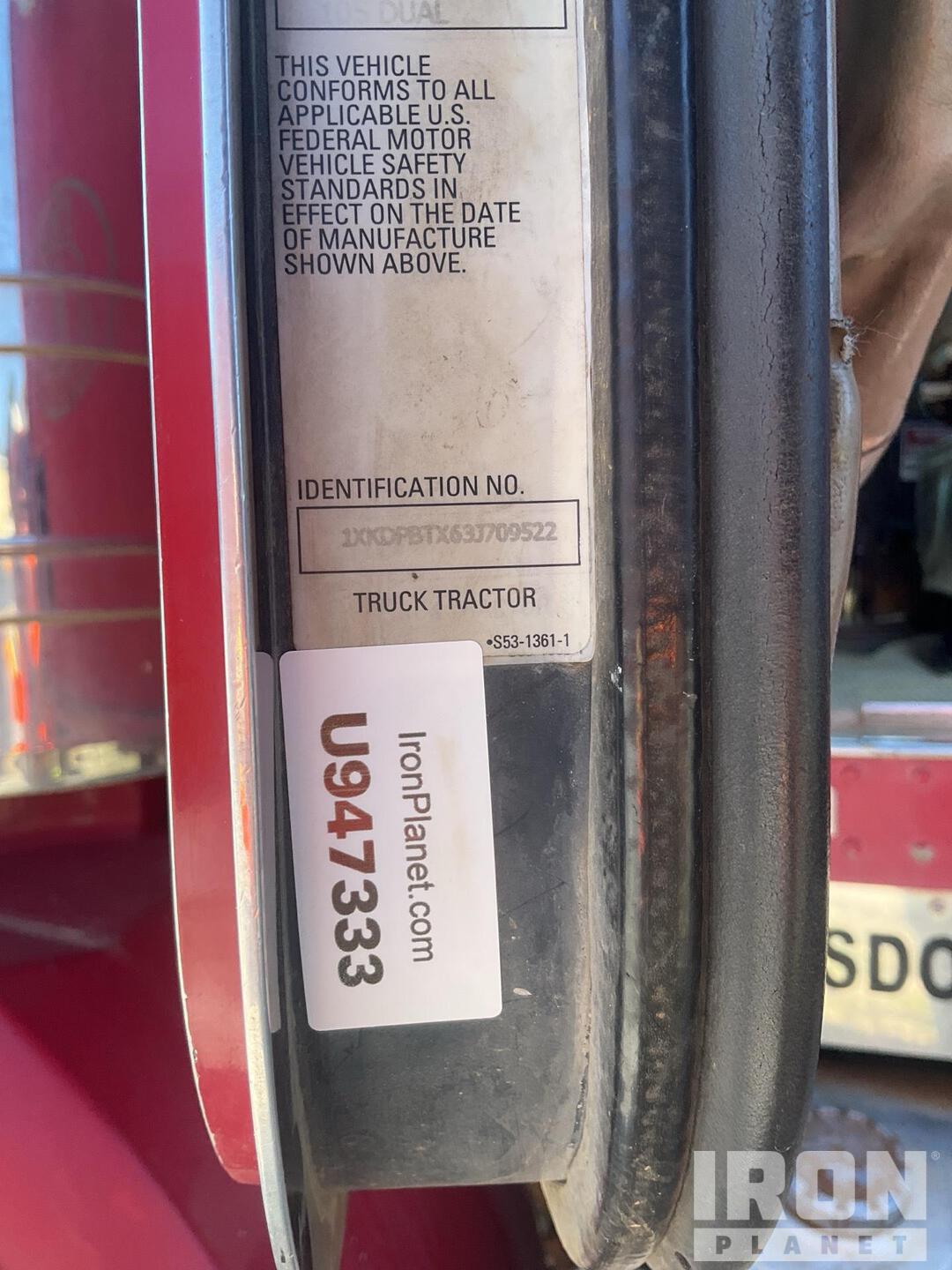

Serial Number / VIN
1XKDPBTX63J709522
Second Serial Number/VIN Photo
Hour Meter / Odometer
253191 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 14/32" Aluminum
- Drum
- Drum
- 12/32" Aluminum
Rear Axle
- /32"
- 7/32" Aluminum
- Drum
- Drum
- N/A
- 4/32" Aluminum
Rear Axle
- 5/32" Aluminum
- 8/32" Steel
- Drum
- Drum
- 13/32" Steel
- 13/32" Aluminum
Rear Axle
- 17/32" Aluminum
- 16/32" Steel
- Drum
- Drum
- 10/32" Steel
- 9/32" Aluminum
Engine
Emissions Information
No US EPA Label Present
A/C Compressor
Operational
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. Starting fluid required to start engine.
Cab
Engine Hours
41413 Engine hrs
Mirrors
Window Controls
Left Manual / Right Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Inoperable
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Air engaged, Operational
ECM Miles
Unable to get ECM reading
Air Conditioner
Doesn’t blow very cold
Heater
Operational, Some fan speeds inoperable
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Power Take Off
Operational
PTO Pump
Operational
Non-Driven Drop Axle (1)
Damaged air bags
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational.
Cab Suspension Air Bags
Frame Condition
Rusted
Suspension Springs/Hangers
Suspension Bushings
Worn bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Hoses
Cylinder(s)
Dripping leak
Cylinder Pins and Bushings
Heavy movement
Limited Function Check
The hydraulic system was operational.
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Specialty
Bed Body
Tailgate
Tailgate sits crooked
Tailgate Latch
Air operated, Not operationally checked
Support Frame
Cracked metal, weld repaired
Hinge Points
External Electrical / Air Connections
Not operationally checked
Tarp
Electric Tarp, Not operationally checked
Pintle Hitch
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Sep 18, 2025 |
| Silicon | 27.77 PPM |
| Tin | 0.58 PPM |
| Silver | 0.09 PPM |
| Aluminum | 8.01 PPM |
| Chromium | 0 PPM |
| Lead | 0 PPM |
| Copper | 4.54 PPM |
| Nickel | 0.14 PPM |
| Iron | 125.77 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
