74 Photos
2014 Morooka MST-2200VD Crawler Carrier
Located
Louisville, MS
Usage
4,082 hrs
Serial number
223666
Loading...
Inspection report:
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12548018
In yard
No
Year
2014
Manufacturer
Model
Asset type
Serial number or VIN
223666
Features
Enclosed Cab, Air Conditioner, 2013 US EPA Label, Cat C7 6 Cylinder 7.2 L Diesel Engine, 30 in Rubber Tracks, 9 ft 2 in Wide x 13 ft 4 in Long Flatbed
Notes
ITEMS AT OFFSITE LOCATION MUST BE PICKED UP BY JANUARY 3RD OR WILL BE SUBJECT TO 3RD PARTY STORAGE FEES
General Appearance

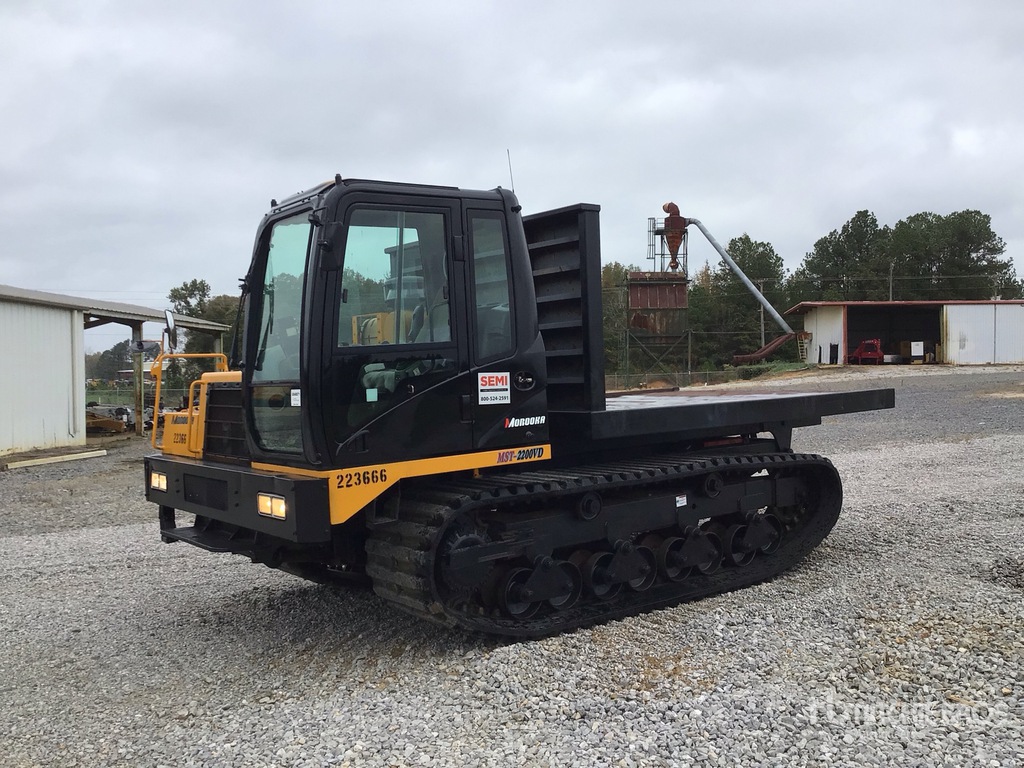

Picture, Left Front Corner

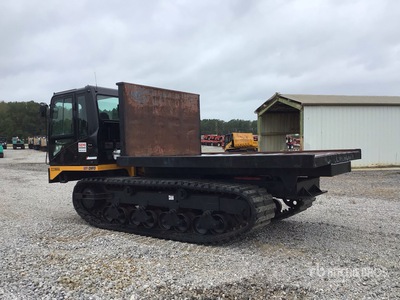

Picture, Left Rear Corner

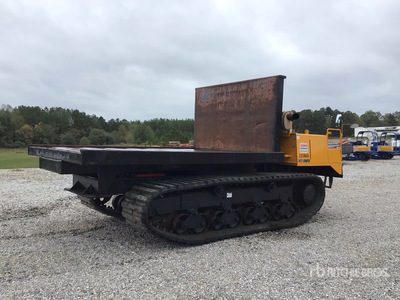

Picture, Right Rear Corner

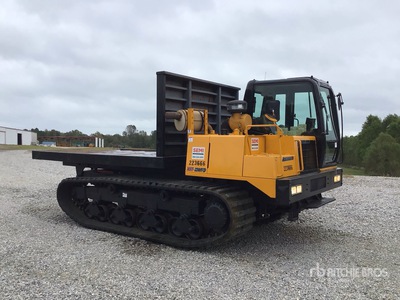

Picture, Right Front Corner
Serial Number / VIN
223666
Hour Meter / Odometer
4082 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Lock bolt out of place top of left side lift cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Frame Condition
Limited Function Check
The main chassis components functioned during a limited check.
Brake Type
Hydrostatic
Park Brake
Stopped from a slow roll
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Bed Body
Has damage
Support Frame
Hinge Points
Limited Function Check
The main chassis components were operational in a limited check.
Rubber Track Undercarriage
Roller Frames
Grouser Height Measurement
Left side: 38 mm, Right side: 37 mm
Track Belt Condition
Normal wear
Rubber Belt Drive Lugs
No visible damage
Track Tensioners
No visible damage
Carrier Rollers
Rear idler wear
Track Rollers
Sprockets
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Dec 04, 2024 | Dec 04, 2024 |
| Silicon | 5.67 PPM | 0.93 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0 PPM | 0.31 PPM |
| Aluminum | 0.86 PPM | 0 PPM |
| Chromium | 0.04 PPM | 0.21 PPM |
| Lead | 0 PPM | 12.05 PPM |
| Copper | 0.83 PPM | 70.76 PPM |
| Nickel | 0 PPM | 0.05 PPM |
| Iron | 2.81 PPM | 14.13 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
