IHI IC45-2 Crawler Carrier Digger Derrick
Located
Louisville, MS
Usage
3,193 hrs
Serial number
CE000842
Loading...
Inspection report:
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12548015
In yard
No
Manufacturer
Model
Asset type
Serial number or VIN
CE000842
Features
Enclosed Cab, Tier 2, 2018 US EPA Label, Mitsubishi 6 Cylinder Diesel Engine, 44 ft Sheave Height, 26250 lb Capacity, Rear Mounted, 33 ft Reach, Insulated Upper Boom, 18 in Auger, Pole Guide, Auxiliary Hydraulics, Turret Mounted Winch, One-Man Basket, 10 ft 0 in Body, X-Type Outriggers, Rear Outriggers, Bumper Mounted Winch, Hydraulic Hose Reel, 24 in Rubber Tracks
Notes
ITEMS AT OFFSITE LOCATION MUST BE PICKED UP BY JANUARY 3RD OR WILL BE SUBJECT TO 3RD PARTY STORAGE FEES
General Appearance

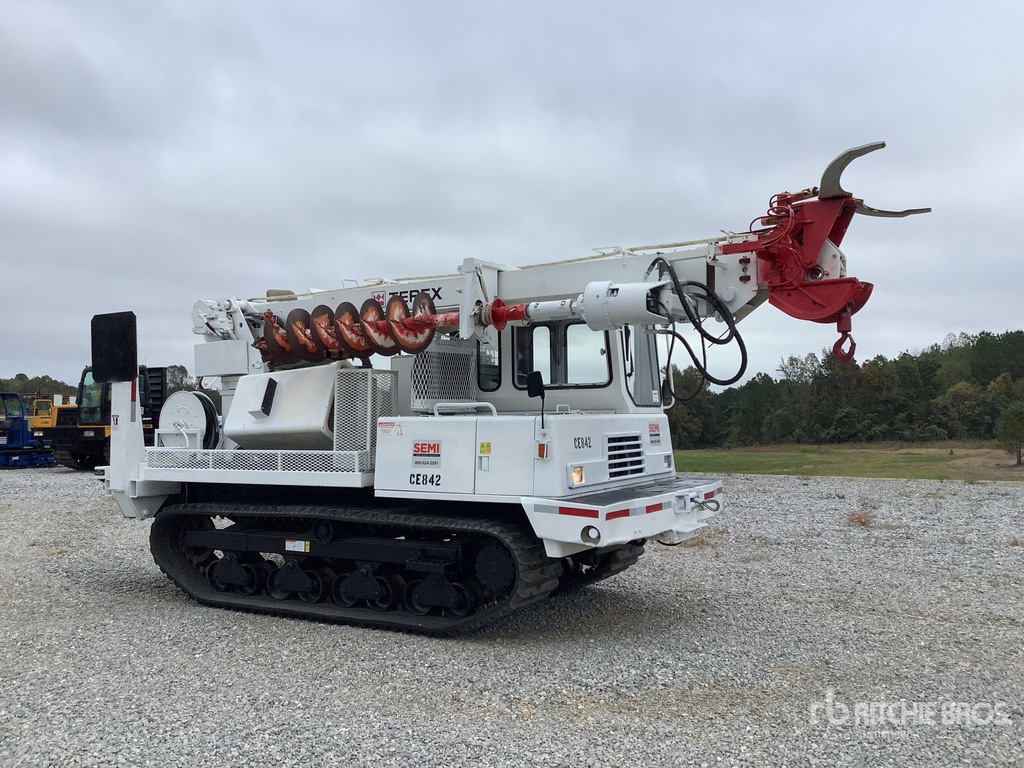

Picture, Left Front Corner

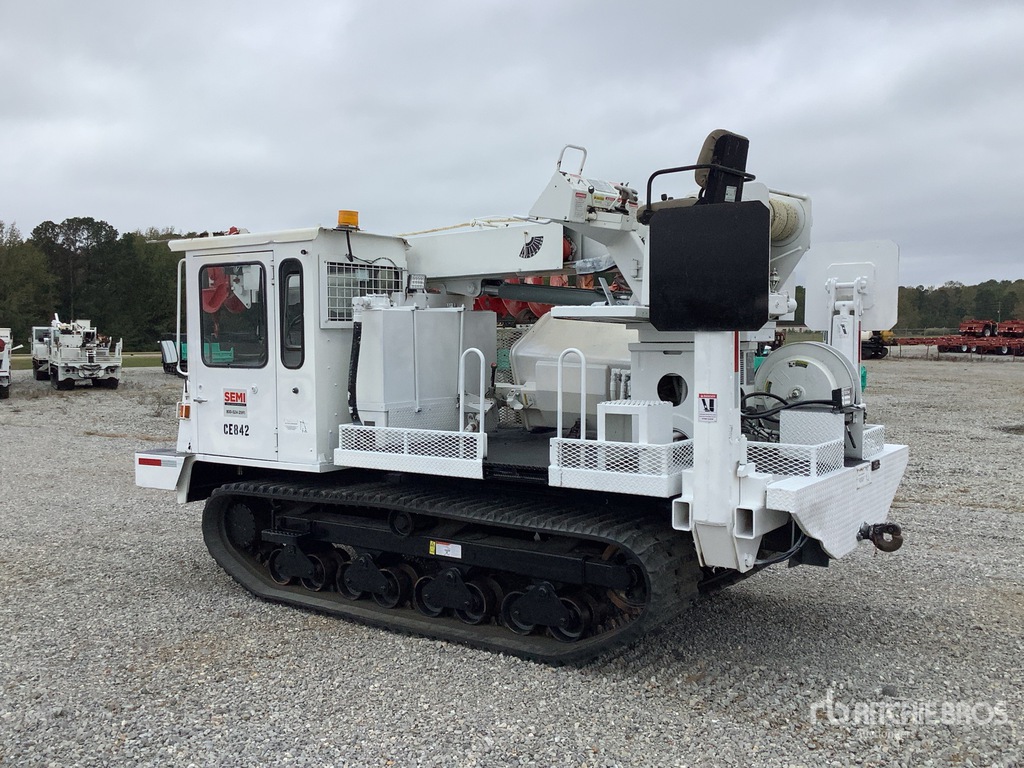

Picture, Left Rear Corner

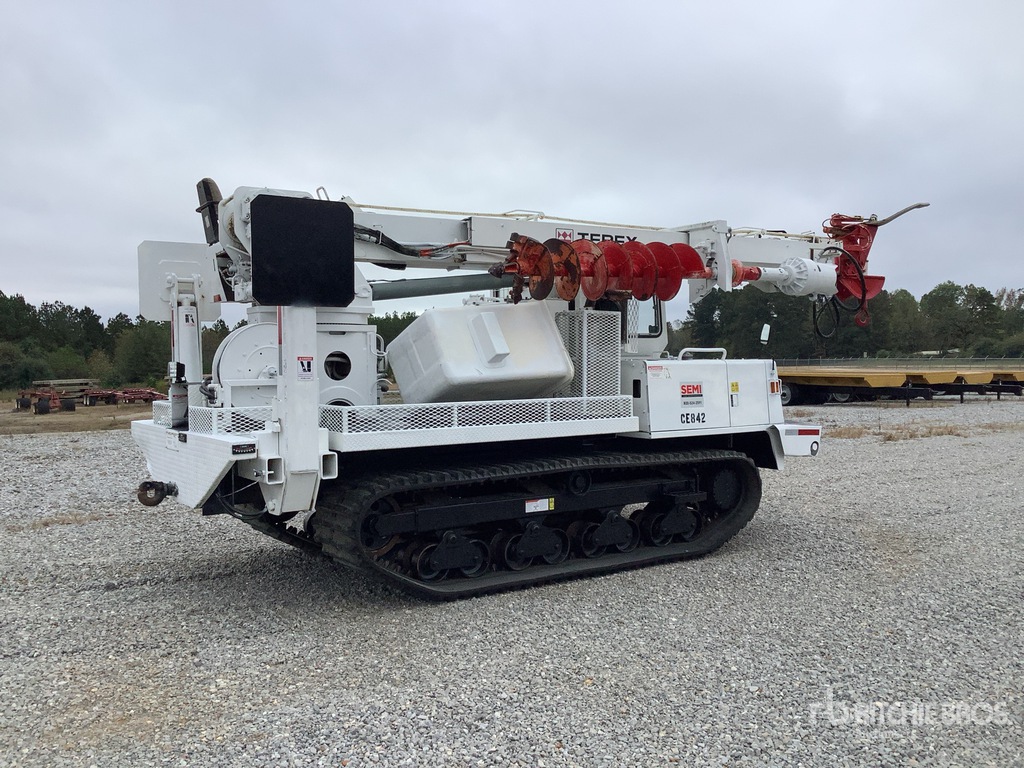

Picture, Right Rear Corner

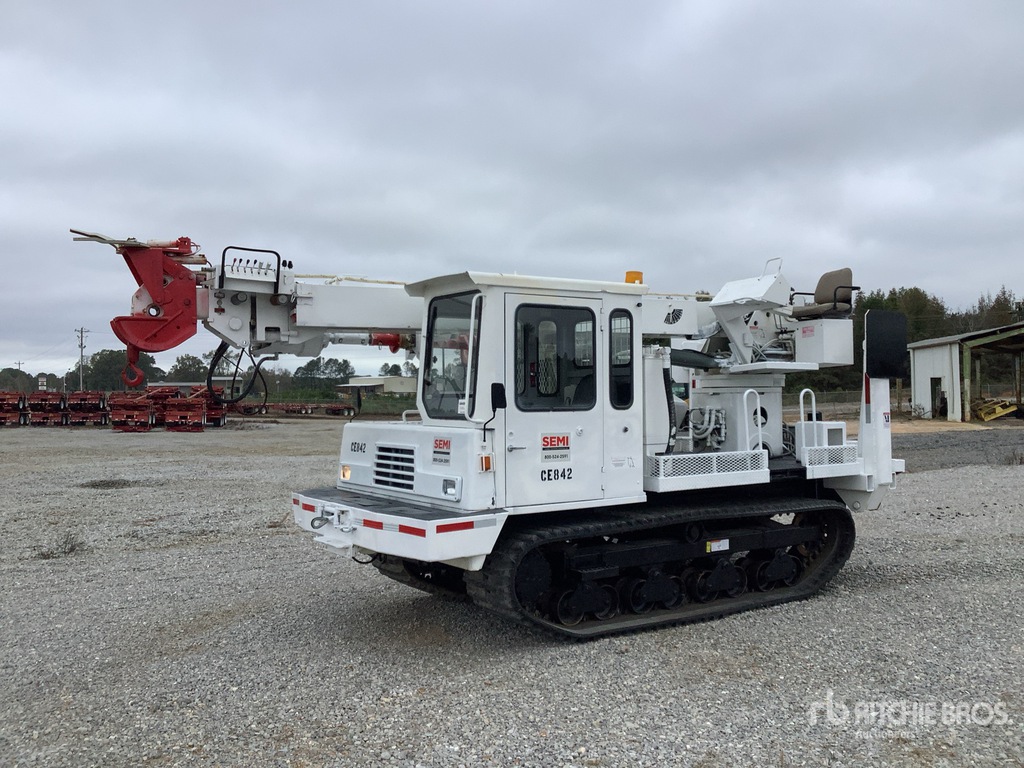

Picture, Right Front Corner
Serial Number / VIN
CE000842
Hour Meter / Odometer
3193 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, 1 lights are not operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Heater
Operational, Fan only works on 1 speed
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Tank
Hoses
Auxiliary Hydraulic Plumbing
Not operationally checked
Limited Function Check
The hydraulic system was operational.
Configuration
Boom
Bed Body
Support Frame
Valves
Hoses (Hydraulic)
Worn hoses
Swing Motor
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Cable Tray Ladder
Turntable Bearing
Stabilizer Beams
Stabilizer Controls
Work Basket
Not installed and not tested
Control Console
Hydraulic Controls
Winch control sticks
Gauges
Operational
Limited Function Check
The hydraulic system was operational.
Rubber Track Undercarriage
Roller Frames
Grouser Height Measurement
Left side: 32 mm, Right side: 31 mm
Track Belt Condition
Damage to the inside of the track belts, Normal wear
Rubber Belt Drive Lugs
No visible damage
Track Tensioners
No visible damage
Carrier Rollers
Rear idler wear
Track Rollers
Sprockets
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| Iron | 5.21 PPM | 3.23 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
| date of analysis | Dec 04, 2024 | Dec 04, 2024 |
| Silicon | 9.57 PPM | 1.21 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0 PPM | 0.01 PPM |
| Aluminum | 1.73 PPM | 0.45 PPM |
| Chromium | 0.21 PPM | 0.68 PPM |
| Lead | 1.01 PPM | 0.04 PPM |
| Copper | 2.74 PPM | 88.87 PPM |
| Nickel | 0.17 PPM | 0.12 PPM |
